Strainers

product magnetic-strainer

Magnetic Strainer /Magnetic Separator

Nova-Tech Filters manufacture magnetic insert for most type of strainers and filters. Magnetic Inserts help in removing iron content in the fluid and filter elements particles up to 1 micron. We offer magnet range up-to 10,500 Gauss. Nova-Tech Filters can help you select the right magnet for your application along with filtration efficiency

Size: 1/2'' to 24''
Micron Rating: 2 Micron to 1500 Micron
Material: SS304, SS316, Duplex 2205
Class: 150#, 300#, 600#, 900#, 1500#, 2500#
product

Basket Strainer

Nova-Tech Filters Basket Strainer is a closed vessel with cleanable screen element designed to remove and retain foreign particles down to 0.001-inch diameter from various flowing fluids. It has a lifting handle so that all dirt captured can be easily be removed for disposal.

It can be used where large amounts of solid particulate and collisions are expected and where the clean-out will be frequent.

Large basket size can be manufactured as per the requirement of the client. It holds sufficient solids for a specific interval of time between clean outs. To get the best micron ratings and flow rate, multiple baskets can be incorporated. For further improvement in micron rating, baskets are replaced by cartridges of large surface area.

Size: 1/2'' to 60''
Micron Rating: 2 Micron to 1500 Micron
Material: M.S., MSRL, SS304, SS316, Duplex 2205, FRP
Class: 150#, 300#, 600#, 900#, 1500#, 2500#
product duplex

Duplex Strainer

Nova-Tech Filters Duplex Basket filters are designed in Duplex type with 3-Way L Port Valves. It is supplied with Steam Jacket for fluid heating. Duplex basket is also supplied with Candle, cartridge to retain any size of the iron particle. It has a large dirt holding capacity which does not require frequent cleaning. Filter elements can be easily cleaned whenever required. Duplex Basket filters facilitate the cleaning of the filter elements without interruption of fluid flow By Rotating of 90 Degree Common Handle.

Duplex strainers are used in various industries such as process industry, power industry, chemical industry, oil and gas industry, pulp and paper industry, pharmaceutical industry, metals and mining industry, water and waste management, firefighting industry, refineries and petrochemical plants. Strainers are used to remove hazardous elements that might cause a partial or complete breakdown of operations if they get into the system.

Size: 1/2'' to 48''
Micron Rating: 2 Micron to 1500 Micron
Material: M.S., MSRL, SS304, SS316, Duplex 2205, FRP
Class: 150#, 300#, 600#, 900#, 1500#, 2500#
product

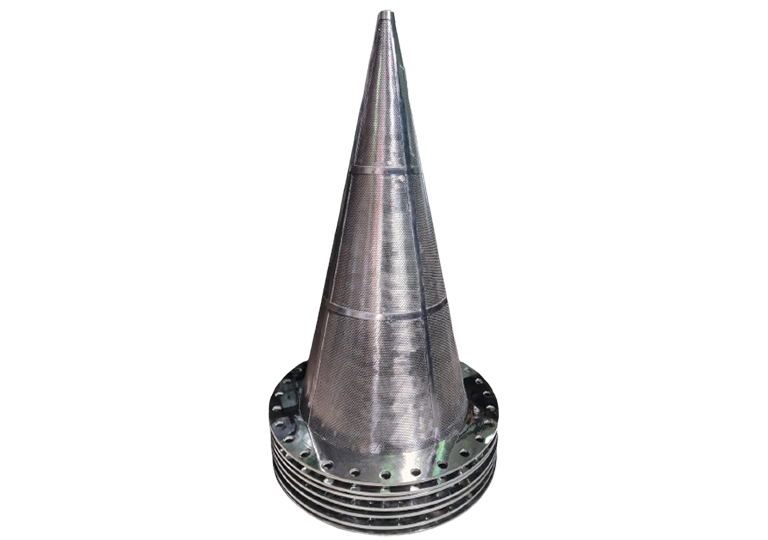

Conical Strainer With Spool

Nova-Tech Filters Conical strainers are commonly known as Temporary Strainers. These strainers are easily replaceable in a pipe and are considered ideal for escalating the flow in pipe joints. These temporary pipeline strainers are a cost-effective mean for temporary straining for start-up applications. These temporary cone structures like strainer are designed for initial start-up and should not be used as a permanent straining solution in place of Y-strainers, basket strainers, tee strainers, or duplex basket strainers.

Size: 1'' to 24''
Micron Rating: 2 Micron to 1500 Micron
Material: M.S., SS304, SS316, Duplex 2205,
Class: 150#, 300#, 600#, 900#
product

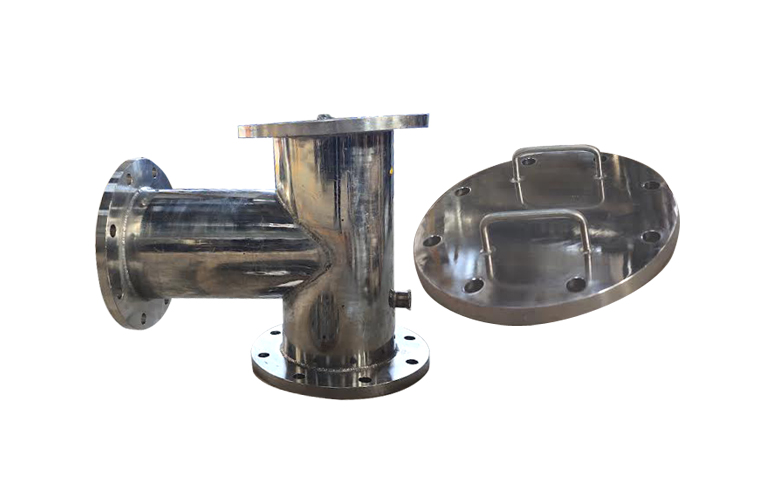

Tee Type Strainer

Nova-Tech Filters also make Flanged end “Tee” type strainers. The basket is manufactured with a perforated plate or wire mesh (or both) made of stainless steel or other resisting alloys depending on the customers’ Requirements. These strainers are compact in size and shape. It can be used in applications where there is a space crunch. Wide applications of Tee Type strainer are refineries and Petrochemicals.

Size: 3'' to 48''
Micron Rating: 2 Micron to 1500 Micron
Material: M.S., MSRL, SS304, SS316, Duplex 2205, FRP
Class: 150#, 300#, 600#, 900#, 1500#, 2500#
product y-type-strainer

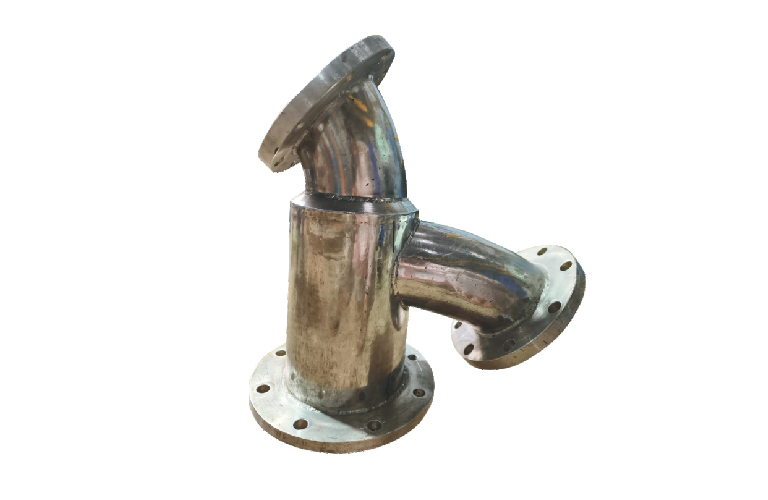

Y Type Strainer

Nova-Tech Filters Y type strainers have a bolted cover along with blow off drain connections. Flanged ends/butt-weld ends, Socket Weld Screws end makes it compact in size. Although it is easy to install its size doesn’t allow it to hold a high amount of dirt. Our fabricated Y type strainers are easy to carry and install because of its low weight and compact size. We make larger size and pressure of fabricated strainers as well.

Size: 1/2'' to 60''
Micron Rating: 2 Micron to 1500 Micron
Material: M.S., MSRL, SS304, SS316, Duplex 2205, FRP
Class: 150#, 300#, 600#, 900#, 1500#, 2500#
product

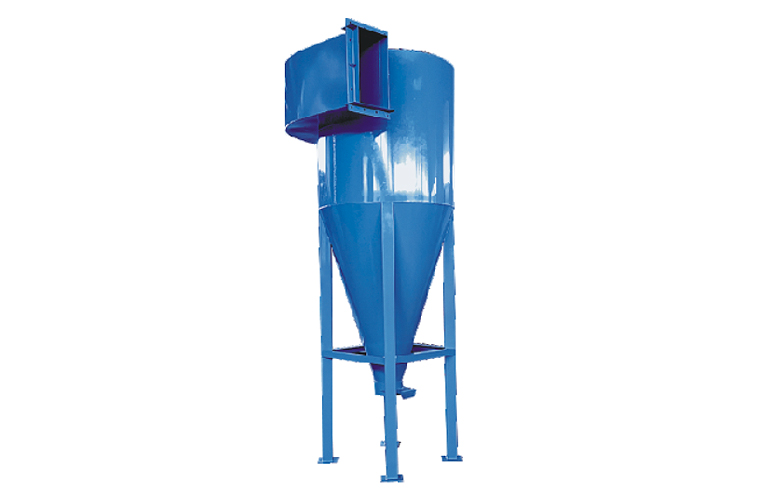

Cyclone Separator

Nova-Tech Filters Cyclone Separators are also known as dust Separators. They require a minimum operating pressure of 2 kg/cm2. Cyclone separators are also used in oil refineries to separate oils and gases and in the cement industry as components of kiln preheaters. They are also used in vacuum cleaners. This filter does not hold any moving part or filtration media. Providing the advantage of zero cost for maintenance.

Size: 1/2'' to 12''
Material: M.S., SS304, SS316, Duplex 2205,
Class: 150#, 300#, 600#, 900#, 1500#, 2500#
product

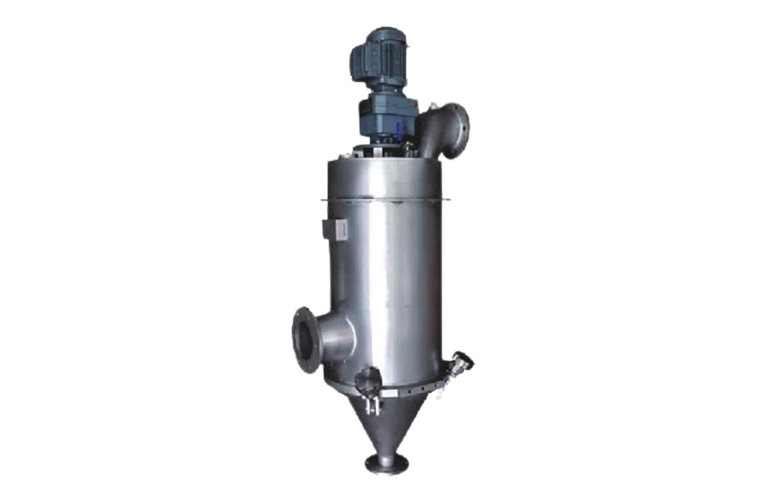

Rotary Brush Strainer

Nova-Tech Filters Rotary brush strainers are used to reduce the load on centrifuges by continuous separation solids from liquids. The rotating brushes retain and scrape the solids inside the strainer. They sink to the bottom of the cone-shaped container and are removed from time to time either manually or automatically. These type of strainers can be used in industries like chemical, pharma, resin, toothpaste filtration, starch industry etc.

Size: 1'' to 12''
Micron Rating: 2 Micron to 1500 Micron
Material: M.S., SS304, SS316, Duplex 2205
Class: 150#, 300#, 600#, 900#, 1500#, 2500#
product

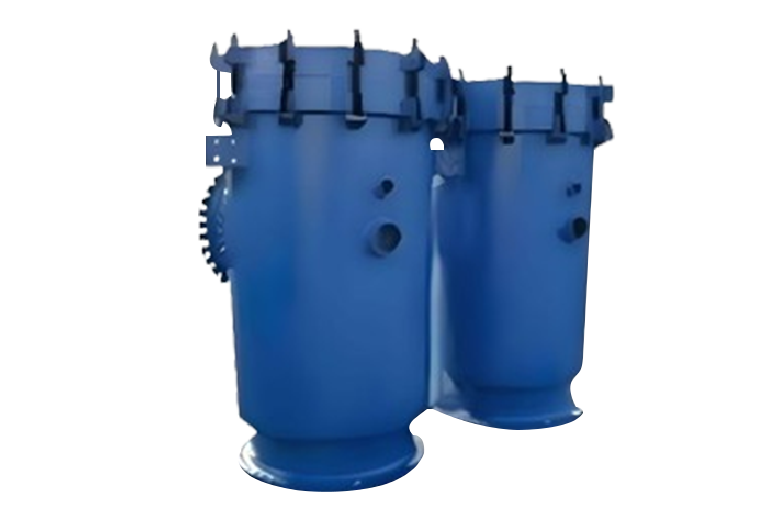

Suction Diffuser

Nova-Tech Filters Suction diffuser mounts to the suction side of a pump in either horizontal or vertical position. Suction Diffusers incorporate the functions of a strainer, flow straightened, elbow and pipe reducer in one compact unit thereby reducing installation costs. It is designed to remove any foreign matter that may be hazardous to the pump or other system components while providing the proper flow conditions to the pump. Suction Diffusers are available configured to replace a standard 90 ° elbow fabricated.

Size: 3'' to 48''
Micron Rating: 2 Micron to 1500 Micron
Material: M.S., MSRL, SS304, SS316, Duplex 2205, FRP
Class: 150#, 300#, 600#, 900#, 1500#, 2500#
